VOLCANO

Volcanoes are designed to operate at peak efficiently with minimum maintenance and minimum operating cost.

They come in the following sizes:
30 - 60 - 75 - 145 - 250 -500  Gallon Systems
For - 850 -1010- 1500 - 2610 Gallon Systems, please call us to order at
(707) 535-0599

All Volcano's utilize Cone Bottom Tanks for superior performance.

How the Volcano Work

The Cone Bottom directs all solids to the center of the tank, where the air is introduced. The Air bonds with the water and lifts the water to the top where it flows to the outward edge then it sinks to the bottom and restarts the sequence again and again.

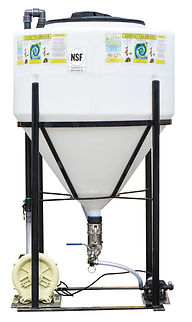

30 GALLON With 350 LPM Air Pump and Fluid Pump

30 GALLON With 350 LPM Air Pump and Fluid Pump

250 COMPOST TEA BREWER

250 GALLON With 1000 LPM Air Pump and Fluid Pump

Recirculation Pattern
600 GALLON COMPOST TEA BREWER

500 Gallon with

1600 LPM Air Pump

& Distribution Fluid Pump

Recirculation Pattern

STAINLESS STEAL LOWER HYDROLIC FITTING
250 COMPOST TEA BREWER BOTTOM

VOLCANO  Lower Assembly

Cast Stainless Steel with Stainless Cam Locks and Stainless Ball Valve

250 Gallon Lower unit with Fluid Pump & Optional Electrical Panel



Sediment Free Brewing

Cone Bottom Tanks with Center Air Inject is the Key to a Sediment Free Brewing System.



The Volcano keeps all solids suspended and in constant motion. The solids are lifted by the high volume/low pressure air that is injected into the bottom center of the tank. This moves the material vertically through the center of the tank until it reaches the top and flows outward toward the edge. The material and water loses it velocity at the edge and sinks to the bottom center to start the cycle again and again.

Outward Flow

Circulation effect Graphic

Air and Water Rise through the center

Water and Soilds sink at the outer edges

Upward flow

Water and Air Flow Pattern

Stainless Steel Valve for Compost Tea System

AIR IN

TOP OF CHAMBER

FLUID OUT

BOTTOM OF CHAMBER

TANK ATTACHMENT

CAM LOCK

STAINLESS STEEL

SEDIMENT FREE

LOWER UNIT



Volcanoes have been extensively tested for Oxygen Levels, dissolved Solid Extractions and we constantly do Microscopic inspection of the final Tea Product.

We typical see the Oxygen Content of the Water increase to about 11.25 PPM within a 15 - 20 mins.

We have found no other methodology or technology that out performs the Volcano.



If you are looking for a brewer that is designed for long term commercial uses and demand  consistent top level performance the VOLCANO Series is the one for you.

Volcanoes ship via Truck to Commercial Site or Local Truck Terminal.

Call for additional shipping fees imposed by Truck Companies  to Residential Sites or Farms or International

Complies to:

NSF/ANSI Standard 61

FDA 21 CFR 177.1520

CALIFORNIA AB 1953 CA H&S 116875

VERMONT ACT 193

Anatomy of The Volcano

Anatomy of the Volcano system explaining all parts
Pump for volcano

Volcano by Size

Volcano 30

  • 350 LPM Regenerative Rotary Air Pump  110 VAC 120 Watts OR 12 VDC

  • 1" Air Hose with Check Valve and Cam Locks on All attachment Fittings

  • 4.5 GPM @40 PSI Diaphragm Pump

  • 24" Diameter x 48" High



VOlcano 30 gal COMPOST TEA BREWER

Regenerative

​

Volcano 30 gal compost tea brewer

12 VDC

​

Volcano 60 gal compost tea brewer
Volcano 60 gal open top compost tea brewer
Volcano 60

  • 433 LPM  15.9 CFM Regenerative Rotary Air Pump  110 VAC  180 Watts

  • 4.5 GPM @ 40 PSI Distribution / Spray Fluid Pump

  • 1" Air Hose with Check Valve and Cam Locks on All attachment Fittings

  • 32" Diameter x 48" High



NOW ALSO AVAILABLE AS OPEN TOP SERIES  60 GALLON



CLOSED TOP

OPEN TOP

60 OPEN TOP COMPOST TEA BREWER TOP VEIW

Volcano 75

  • 433 LPM  15.29 CFM Regenerative Rotary Air Pump  110 Vac 180 Watts

  • 1" Air Hose and Cam Locks on all attachment Fittings

  • 4.5 GPM @ 40 PSI Diaphragm Distribution Pump with Garden Hose Fitting

  • 36" Diameter x 52" High

Volcano 75 gal compost tea brewer
Volcano 145 gallon compost tea brewer
Open Top Volcano 145 compost tea brewer top view

Volcano 145

  • 583 LPM 20.58 CFM Regenerative Rotary Air Pump 110 VAC 250 Watts

  • 4.5 GPM Diaphragm Distribution Pump w/Garden Hose Adapters

  • 1" Air Hose with  Stainless Steel Cam Locks on All Fittings

  • Stainless Steel Lower Fluid Unit

  • 42" Diameter x 54" Hi25

  • Open Top





STAINLESS STEAL LOWER HYDROLIC FITTING

Volcano 250

  • 35.1 CFM Regenerative Rotary Air Pump 110 Vac 370 Watts

  • 1 1/2" Air Hose with Cam Locks on all Fittings

  • Stainless Steel Lower Fluid Unit

  • 13.5 GPM @ 40 PSI Diaphragm Distribution Pump

  • 44" Diameter x 68" High

  • Open Top

Volcano 250 Gal compost tea brewer
Volcano 500 Gal compost tea brewer
Volcano 500 gal compost tea brewer open top

Volcano 600

  • 56.5 CFM Air Pumps 110 VAC 550 Watts

  • Air System include 56.5 CFM Regenerative Rotary

  • 1 1/2" Air Hose with Camlocks on all Fittings for Rotary Systems

  • 13.5 GPM @ 40 PSI Diaphragm Distribution Pump

  • 72" Diameter x 72" High

  • Open Top

    *Optional Lid Sold Separately

For the following sizes, call to order (707) 535-0599

Volcano 850

  • 1600 LPM Air Pump 110 VAC 750 Watts

  • Regenerative Rotary 56.5 CFM Air Pump: 550 Watts

  • 1 1/2" Air Hose with Cam Locks on all Fittings for Rotary Systems

  • 13.5 GPM @ 40 PSI Diaphragm Distribution Pump

  • 91" Diameter x 67" High

Volcano 850 Gal compost tea brewer
Volcano 850 System compost tea brewer

Volcano 1150

  • 65 CFM Air Pump 110 VAC 750 Watts

  • Regenerative Rotary 1850 LPM 65 CFM Air Pump

  • 1 1/2" Air Hose with Cam Locks on all Fittings for Rotary Systems

  • 1/2" Air Hoses on Electromagnetic with check valves

  • 13.5 GPM @ 40 PSI Diaphragm Distribution Pump

  • 91" Diameter x 90" High

Volcano 1150 Gal compost tea brewer
Volcano 1750 Gal compost tea brewer

Volcano 1750

  • 153 CFM Air Pump 220 VAC 2200 Watts

  • Regenerative Rotary Air Pump

  • 2" Air Hose with Cam Locks on all Fittings for Rotary Systems

  • 13.5 GPM @ 40 PSI Diaphragm Distribution Pump

  • 91" Diameter x 98" High

Volcano 2350

  • 153 CMF Air Pump 220VAC 2000 Watts   Regenerative Rotary

  • 2" Air Hose with Cam Locks on all Fittings

  • 13.5 GPM @ 40 PSI Diaphragm Distribution Pump  1" Hoses

  • 91" Diameter x 158" High

Volcano 2350 gal compost tea brewer
